Motor Current Analysis (MCA)

What is Motor Current Analysis?

Motor Current Analysis (MCA) is a diagnostic technique used to evaluate the condition of electric motors and the equipment they drive. Induction motors, known for their reliability, can face operational issues such as broken rotor bars, making condition monitoring techniques like MCA crucial.

Let me provide a detailed glossary definition and explain this concept.

A non-intrusive diagnostic and monitoring technique that analyzes the electrical current signatures of motors to detect mechanical and electrical issues in both the motor and the driven equipment. MCA interprets variations in current consumption patterns to identify faults before they lead to failure.

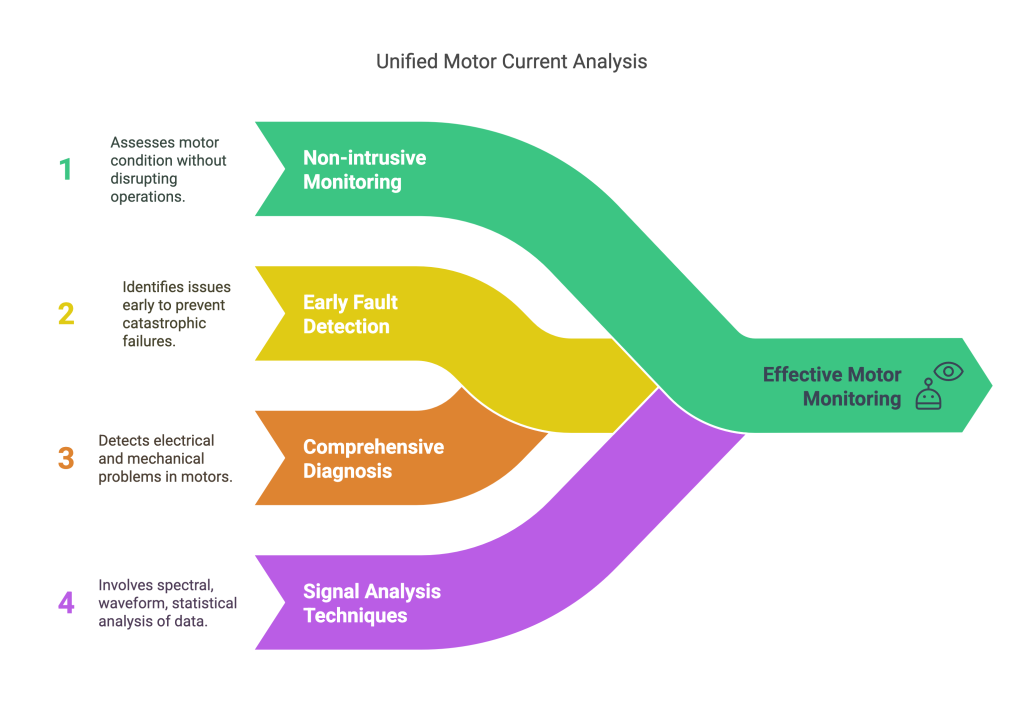

Key aspects of Motor Current Analysis:

• Non-intrusive monitoring: MCA allows for condition assessment without disrupting normal operations, as current can be measured without direct access to the motor.
• Early fault detection: By analyzing current signatures, MCA can identify developing issues before they cause catastrophic failures or unplanned downtime.
• Comprehensive diagnosis: MCA can detect electrical problems (such as broken rotor bars and shorted windings) and mechanical issues (such as misalignment, bearing wear, or pump/fan problems).
• Based on signal analysis, MCA typically involves spectral, waveform, and/or statistical analysis of motor current data.
• Also known as: Motor Current Signature Analysis (MCSA), Electrical Signature Analysis (ESA), or Current Signature Analysis (CSA).

Source: WorkTrek.com

What is Motor Current Analysis in condition monitoring?

Motor Current Analysis (MCA) is a predictive maintenance technique that examines the electrical current consumed by a motor to evaluate its health and operating condition and the condition of the equipment being driven by the motor.

The technique works on the principle that mechanical and electrical faults create distinct patterns in the motor’s current consumption.

Different failure mechanisms can impact the current sine wave, and each type of fault, such as pump cavitation or bearing damage, displays unique patterns. When a motor experiences issues like unbalanced loads, bearing wear, misalignment, or electrical problems, these manifest as identifiable variations in the current signature.

MCA involves collecting current data using current transformers or clamp-on ammeters, then analyzing this data through various signal processing methods like Fast Fourier Transform (FFT) to convert time-domain signals into frequency-domain representations. The resulting spectral data reveals specific frequency components corresponding to different fault conditions.

Maintenance professionals use MCA as part of predictive maintenance programs to identify developing problems before they cause equipment failure, helping to reduce downtime, optimize maintenance scheduling, and extend equipment life.

Monitoring motors using advanced techniques like Motor Current Signature Analysis (MCSA) is crucial for condition monitoring of induction motors, especially in challenging environments such as nuclear power plants. This enhances operational safety and reliability without interrupting production.

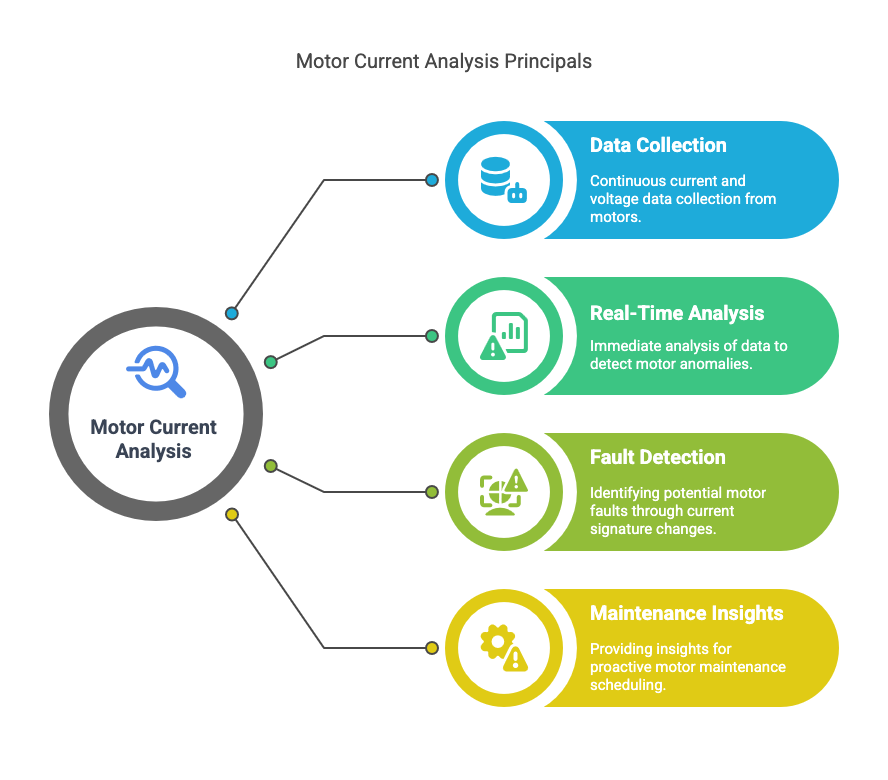

Principles of Motor Current Analysis

Motor current analysis, also known as motor current signature analysis (MCSA), is a sophisticated condition monitoring technique that leverages current and voltage data analysis to diagnose electric motor issues.

The core principle of MCSA is that the electrical current drawn by a motor is directly influenced by its operating condition. Any deviations or anomalies in the motor’s performance will manifest as changes in its current signature.

To implement MCSA, sensors are strategically installed inside the motor control cabinet (MCC). These sensors continuously collect data online, ensuring that production processes are not interrupted.

The collected data includes current and voltage measurements, which are then subjected to advanced algorithms designed to detect anomalies. The algorithms analyze the data in real time, identifying patterns and deviations that may indicate potential faults.

By utilizing motor current signature analysis, maintenance teams can gain valuable insights into the health of electric motors, enabling them to detect issues early and schedule maintenance activities proactively.

This non-intrusive approach to condition monitoring enhances the reliability of motor-driven systems and optimizes maintenance efforts, reducing downtime and extending the lifespan of critical equipment.

Source; WorkTrek.com

Fault Detection and Classification

Fault detection and classification are important aspects of motor current analysis. MCSA is adept at identifying faults, including broken rotor bars, bearings, and stators. The technique employs sophisticated anomaly detection algorithms to scrutinize the current signature for any irregularities that may signal a fault.

Once an anomaly is detected, MCSA categorizes the fault based on its unique characteristics. This classification process involves analyzing the frequency and amplitude of the fault signal, which provides crucial information about the nature and severity of the issue. For instance, a change in the frequency component of the current signal might indicate a broken rotor bar, while variations in amplitude could point to bearing wear.

By accurately detecting and classifying faults, MCSA enables maintenance teams to pinpoint the root cause of issues and take targeted corrective actions.

This proactive approach prevents unexpected equipment failures and facilitates efficient maintenance scheduling, enhancing the motor-driven systems’ overall reliability and performance.

Current Spectrum Analysis

Current spectrum analysis is a fundamental component of motor current analysis. It provides a detailed examination of the current signal’s frequency spectrum.

This technique transforms the time-domain current signal into its frequency-domain representation, typically using Fast Fourier Transform (FFT) methods.

The resulting frequency spectrum is displayed as a graph, with frequency on the x-axis and amplitude on the y-axis.

By scrutinizing this graph, maintenance professionals can identify patterns and anomalies that may indicate potential faults.

For example, an increase in certain frequency components might suggest the presence of broken rotor bars, while other frequency changes could signal mechanical faults such as misalignment or bearing wear.

Current spectrum analysis allows for a precise and detailed understanding of the motor’s operating condition. By detecting subtle changes in the frequency or amplitude of the current signal, MCSA provides early warnings of developing issues, enabling timely intervention and preventing costly downtime.

Limitations and Challenges

While motor current analysis is a powerful tool for condition monitoring, it does have its limitations and challenges.

One of the primary challenges is the need for a substantial amount of data to achieve accurate and reliable results. This can pose a significant hurdle in environments where data collection is limited or difficult.

Additionally, interpreting the data collected through MCSA requires advanced algorithms and a high level of expertise.

The complexity of these algorithms can be daunting for some users, necessitating specialized training and knowledge to utilize the technique effectively.

Moreover, MCSA does not replace traditional condition monitoring techniques like vibration analysis.

Instead, it is a complementary technology that provides additional insights into motor conditions. In the condition monitoring industry, integrating MCSA with other techniques enhances the overall effectiveness of predictive maintenance programs.

Despite these challenges, motor current analysis has substantial benefits. By analyzing current and voltage data, MCSA can detect potential faults before they escalate, reducing downtime and increasing productivity.

This is particularly valuable in applications with impractical traditional condition monitoring techniques, such as nuclear power plants or other hazardous environments. As the condition monitoring industry continues to evolve, motor current analysis is expected to grow, driven by its ability to provide early fault detection and support predictive maintenance strategies.
