Process Failure Mode and Effects Analysis (PFMEA)

What is Process Failure Mode and Effects Analysis (PFMEA)

Process Failure Mode and Effects Analysis is a specialized engineering methodology that evolved from the broader family of FMEA techniques. It’s specifically designed to analyze manufacturing and assembly processes, though its applications have expanded to include service processes and maintenance procedures.

At its core, PFMEA is a systematic method of examining a process step-by-step to identify potential failures before they occur to mitigate risk.

Think of it as a preventive health checkup for industrial processes – just as a doctor examines various aspects of your health to prevent future problems, PFMEA examines multiple aspects of a process to avoid future failures.

The term can be broken down into its key components to understand its meaning better:

“Process” refers to any sequence of steps that produces a specific outcome. This could be a manufacturing process, a service delivery, or a maintenance procedure.

The process focus distinguishes PFMEA from other types of FMEA, such as Design FMEA (DFMEA), which focuses on product design.

“Failure Mode” describes how a process step could fail to perform its intended function. For example, in a welding process, a failure mode might be “insufficient weld penetration” or “incorrect weld temperature.”

“Effects Analysis” involves studying the consequences of these potential failures. This includes immediate effects (like a defective product) and broader impacts (customer dissatisfaction, safety risks, or production delays).

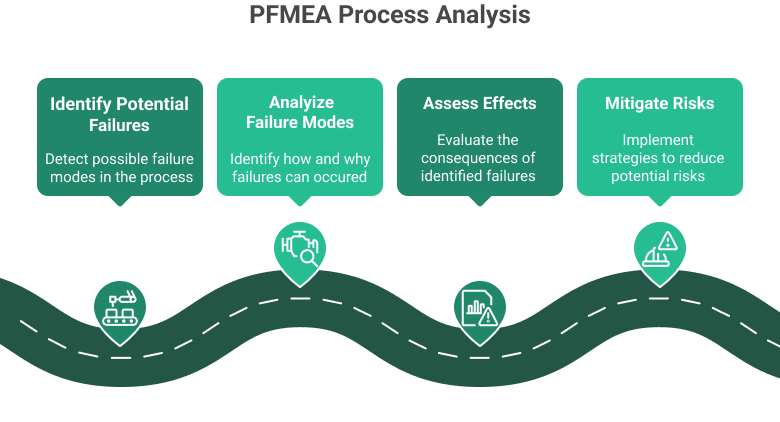

Data and Illustration: worktrek.com

How does it work?

The methodology incorporates quantitative risk assessment through its Risk Priority Number (RPN) system, which helps organizations prioritize their improvement efforts based on the severity of potential failures, their likelihood of occurrence, and the ability to detect them before they cause problems.

Detection rankings are assigned based on the effectiveness of existing process controls, with higher detection rankings indicating more difficulty in detecting failures and lower rankings suggesting a greater ability to foresee and manage potential issues.

These detection rankings are crucial in calculating the RPN, severity, and occurrence for effective risk management.

PFMEA is distinguished from other quality tools by its proactive nature. Unlike reactive methods that analyze failures after they occur, PFMEA aims to prevent failures by identifying and addressing potential problems during the process planning stage.

It’s particularly valuable during the early phases of process development or when making significant changes to existing processes.

The methodology is also inherently collaborative, requiring input from various stakeholders, including process engineers, operators, quality specialists, and maintenance personnel.

This multi-disciplinary approach ensures that the analysis benefits from diverse perspectives and expertise.

In the context of Industry 4.0 and modern manufacturing, PFMEA has evolved to incorporate data analytics and real-time monitoring capabilities. Modern PFMEA implementations often integrate with digital systems to provide dynamic risk assessment and predictive maintenance capabilities.

Understanding this definition is crucial because it sets the foundation for how organizations approach process improvement and risk management.

It helps explain why PFMEA has become a fundamental tool in quality management systems and why it’s required by many industry standards, including automotive (IATF 16949) and aerospace (AS9100) quality management systems.

How PFMEA Works

PFMEA is a structured approach to identifying and evaluating potential failures in a process. It involves a series of steps that help organizations to identify, prioritize, and mitigate potential failures.

How Maintenance Organizations Use PFMEA

Maintenance organizations implement PFMEA in several sophisticated ways. They begin by analyzing their maintenance procedures, identifying critical equipment and systems, and mapping out their maintenance processes.

They evaluate potential failure modes for each maintenance activity – what could go wrong during preventive maintenance, repairs, or routine inspections.

While eliminating failure modes is impossible, minimizing these failures through routine analysis can significantly enhance operational excellence.

For example, maintenance teams might use PFMEA to analyze maintenance procedures when maintaining a critical pump system.

They would examine each step, from initial inspection to final testing, identifying potential failures like incorrect torque application during reassembly, improper installation alignment, or missed verification steps.

Maintenance organizations also use PFMEA to prioritize their resources and efforts. By calculating Risk Priority Numbers (RPN) for each potential failure, they can first focus on the most critical issues.

This helps them develop effective preventive maintenance schedules and create detailed work instructions addressing identified process failures.

Pros and Cons of PFMEA

Let’s examine the advantages and limitations of PFMEA:

Advantages

PFMEA helps identify potential failure modes early in the design process, allowing for timely corrective actions. It is a structured approach to failure analysis, enhancing reliability and safety through systematic evaluations. This proactive method can significantly reduce the risk of costly recalls and improve product quality.

Limitations

Despite its benefits, PFMEA has some limitations. It might not capture all failure interactions in complex systems, particularly when multiple failures coincide, which can lead to system failure. Additionally, the effectiveness of PFMEA largely depends on the accuracy and completeness of the information available during the analysis.

Advantages

First, PFMEA provides a structured risk identification and prevention approach. It helps organizations move from reactive to proactive maintenance by identifying potential failures before they occur.

PFMEA is a structured approach to failure analysis that enhances reliability and safety through systematic evaluations. The method also creates a valuable knowledge base of process vulnerabilities and solutions that can be used for training and continuous improvement.

Another significant advantage is its ability to quantify risk through the RPN calculation, making it easier to prioritize improvement efforts and allocate resources effectively.

PFMEA’s collaborative nature brings together different perspectives and expertise, leading to more comprehensive analysis and better solutions.

Limitations

However, PFMEA can be time-consuming and resource-intensive, especially for complex processes. The quality of the analysis heavily depends on the team’s experience and knowledge.

There’s also a risk of oversimplification when assigning severity, occurrence, and detection ratings, which could lead to incorrect risk prioritization.

The method might not capture all failure interactions in complex systems, mainly when multiple failures coincide, which can lead to system failure.

Additionally, the RPN calculation can sometimes be misleading as it treats all factors equally when in some cases, severity might be more important than detection or occurrence.

How to Perform Process Failure Mode and Effects Analysis

Here’s a detailed, step-by-step approach to conducting a PFMEA:

Introduction

Process FMEA (Failure Mode and Effects Analysis) is an important analytical tool for evaluating and identifying potential failures in operational processes. It focuses on productivity, quality control, and safety and aims for continuous improvement by addressing the root causes of failure.

Step 1: Perform a Process Review

Begin by thoroughly reviewing the process. This review should identify process failure modes to enhance productivity, quality control, and safety. Document each step and gather all relevant information to understand the process flow and its components.

Step 2: Identify Potential Failure Modes

Next, identify potential failure modes. PFMEA specifically examines failure modes related to operational processes. Consider all possible ways the process could fail and the effects of those failures. This step is crucial for preemptively addressing issues that could impact the final product.

Step 3: Assess the Effects of Each Failure Mode

Evaluate the potential effects of each identified failure mode and determine the severity of each effect on the overall process and product quality. This assessment helps prioritize which failure modes need immediate attention.

Step 4: Determine the Causes of Each Failure Mode

Identify the root causes of each failure mode. Understanding the underlying reasons for failures allows for more effective solutions and preventive measures.

Step 5: Implement Corrective Actions

Develop and implement corrective actions to address the identified failure modes. These actions should aim to eliminate or mitigate the causes of failures, thereby improving the process and ensuring higher-quality outcomes.

Step 6: Monitor and Review

Continuously monitor the process and review the effectiveness of the corrective actions. Regular reviews help ensure that the process remains efficient and that any new failure modes are promptly addressed.

Step 1: Perform a Process Review

The first step in the PFMEA process is thoroughly reviewing the existing process. This involves gathering comprehensive information about the process, including its inputs, outputs, and key activities. The review should also identify any existing controls or safeguards that are in place to prevent or detect failures.

During the process review, the team should gather data and information from various sources, including:

• Process documentation and procedures
• Historical data on process performance and failures
• Input from process owners and operators
• Review of existing controls and safeguards

The process review aims to deepen the team’s understanding of the process and its potential vulnerabilities. By thoroughly examining the existing process, the team can lay a solid foundation for identifying potential failure modes and their impacts.

Step 2: Identify Potential Failure Modes

Once the process review is complete, the next step is identifying potential failure modes. A failure mode is a specific way in which a process can fail. The team should use the information gathered during the process review to identify potential failure modes.

Several techniques can be used to identify potential failure modes, including:

• Brainstorming: This involves gathering a team of experts and using brainstorming techniques to identify potential failure modes.
• Historical Data Analysis: This involves analyzing historical data on process performance and failures to identify patterns and trends.
• Process Mapping: This involves creating a visual representation of the process to identify potential failure modes.

This step identifies all potential failure modes, no matter how unlikely they seem. Considering many potential failures, the team can ensure a comprehensive analysis addressing all possible risks.

Step 3: Evaluate Failure Mode Effects

Once potential failure modes have been identified, the next step is to evaluate their effects. This involves assessing each failure mode’s potential impact on the process, including its severity and likelihood.

The team should use a risk assessment matrix to evaluate the effects of each failure mode. The matrix should include the following factors:

• Severity: This is the potential impact of the failure mode on the process.
• Likelihood: This is the probability of the failure mode occurring.
• Detection: This is the likelihood of detecting the failure mode before it occurs.

This step aims to prioritize potential failure modes based on their risk. By evaluating each failure mode’s severity, likelihood, and detection, the team can focus on the most critical issues, ensuring that resources are allocated effectively to mitigate the highest risks.

By following these steps, organizations can systematically identify, evaluate, and address potential failures in their processes, ultimately improving process reliability and performance.

Step 1:

Process Mapping Begins with a detailed process flow diagram. Then, break down the process into individual steps, identifying inputs, outputs, and control points. This creates a foundation for identifying potential failure modes at each step. Additionally, process mapping helps identify process failure modes to enhance productivity, quality control, and safety.

Step 2:

Team Assembly Form a cross-functional team that includes process operators, maintenance personnel, quality engineers, and subject matter experts. Their diverse perspectives will enhance the analysis’s quality.

Step 3:

Failure Mode Identification

For each process step, identify potential failure modes – specific ways the process could fail. Consider both obvious and subtle failure possibilities. Ask “What could go wrong?” at each step. PFMEA specifically examines failure modes related to operational processes, ensuring a thorough analysis of potential failures.

Step 4:

Effects Analysis For each failure mode, determine its potential effects on the process, product, or service. Consider immediate and long-term consequences, including safety, quality, and productivity.

Step 5:

Cause Analysis Identify potential causes for each failure mode. Use root cause analysis techniques like the 5 Whys or Fishbone diagrams to ensure a thorough understanding of failure mechanisms.

Step 6:

Current Controls Document existing controls that either prevent the failure from occurring (prevention controls) or detect the failure if it occurs (detection controls).

Step 7:

Risk Assessment

Rate each failure mode using three factors:

• Severity (S): How serious are the consequences? (1-10 scale)
• Occurrence (O): How likely is the failure to occur? (1-10 scale)
• Detection Ranking (D): How likely are current controls to detect the failure? Assign a detection ranking based on the effectiveness of existing process controls, with higher rankings indicating more difficulty in detecting failures and lower rankings suggesting a greater ability to foresee and manage potential issues. (1-10 scale)

Calculate the Risk Priority Number (RPN) by multiplying these factors: RPN = S × O × D

Risk Priority Number Calculator

Step 8:

Action Planning Prioritize failure modes based on RPN values and develop action plans to address high-risk issues. Focus on reducing either the likelihood of occurrence or improving detection capabilities.

Step 9:

Implementation and Follow-up: Implement the recommended actions and verify their effectiveness. Update the PFMEA document to reflect changes and recalculate RPNs to confirm risk reduction.

The success of PFMEA depends on regular review and updates as processes change or new information becomes available. Organizations should treat it as a living document that evolves with their processes and knowledge base.
