Understanding the distinctions between different analysis methods is important for the effective implementation of risk management tools.

FMEA (Failure Mode and Effects Analysis) and DFMEA (Design Failure Mode and Effects Analysis)are two related but distinct approaches that help organizations identify potential failures before they occur.

The primary difference is that FMEA is a broader technique used across various products, processes, and services throughout their lifecycle. At the same time, DFMEA focuses explicitly on identifying failure modes during the product design phase.

Both methodologies aim to prevent failures but operate at different stages and with different scopes. DFMEA enables teams to assess potential failure modes during early or end stages of product design, helping engineers address issues before manufacturing begins. The standard FMEA, however, can be applied more widely and includes aspects like production and in-service fault detection that extend beyond the design phase.

Organizations often implement both approaches as part of a comprehensive risk management strategy.

While DFMEA targets design-specific concerns, it frequently works alongside other specialized analyses such as PFMEA (Process FMEA), which addresses risks within the manufacturing process rather than the product design itself.

Key Takeaways

• FMEA applies broadly across products and processes throughout their lifecycle, while DFMEA specifically targets potential failures during the design phase.
• Implementing DFMEA helps organizations identify and address design flaws before moving to production, potentially saving significant resources.
• Both methodologies use similar assessment principles but differ in timing, scope, and the specific team members typically involved in the analysis process.

Understanding FMEA

Failure Mode and Effects Analysis (FMEA) provides a structured approach to identifying potential failures in systems, products, or processes. This methodology helps organizations prevent problems before they occur through systematic risk assessment.

Definition of FMEA

FMEA stands for Failure Mode and Effects Analysis, a proactive reliability and risk assessment technique first developed in the 1940s by the U.S. military and later adopted across various industries, including aerospace, automotive, and healthcare.

At its core, FMEA is a systematic methodology that identifies potential failure modes, their causes, and effects before they occur in a system, product, or process.

The analysis typically involves cross-functional teams working together to evaluate risks and develop mitigation strategies. FMEA documents are living documents that should be updated throughout a product or process lifecycle.

Purpose and Objectives

The primary purpose of FMEA is to anticipate and prevent failures before they impact customers or operations. This methodology aims to identify potential risks early when changes are less costly to implement.

Key objectives include:

• Identifying potential failure modes and their impacts
• Prioritizing issues based on severity, occurrence, and detection
• Implementing preventive actions to reduce or eliminate risks
• Documenting knowledge for future reference and continuous improvement
• Reducing warranty costs and enhancing customer satisfaction

FMEA helps organizations make data-driven decisions about risk mitigation and resource allocation. It provides a framework for evaluating tradeoffs between design choices, manufacturing processes, and quality control measures.

Types of FMEA

Several specialized types of FMEA exist to address different aspects of product development and manufacturing:

1. Design FMEA (DFMEA) – Focuses on potential failures in product design before manufacturing begins. DFMEA examines components, subsystems, and their interactions.
2. Process FMEA (PFMEA) – Analyzes manufacturing or assembly processes to identify potential failures in production methods, equipment, or procedures.
3. System FMEA – Considers failures at the overall system level, including interactions between subsystems and components.
4. Service FMEA – Applied to service industries to identify potential failures in service delivery processes.

Each type follows a similar methodology but differs in scope and application timing during a product’s lifecycle. Organizations often implement multiple FMEA types sequentially as projects progress from concept to production.

Defining DFMEA

Design Failure Mode and Effects Analysis (DFMEA) is a specialized methodology used to identify and prevent potential design failures before they occur. This proactive approach analyzes design elements to reduce risks and improve product reliability from the earliest development stages.

Definition of DFMEA

DFMEA stands for Design Failure Mode and Effects Analysis, a subset of the broader FMEA methodology. It focuses explicitly on potential failures in the product design process rather than manufacturing or operational failures.

During the design phase, DFMEA examines products or systems to identify where and how they might fail. The primary goal is to catch design flaws before production begins.

Engineers use DFMEA to evaluate the overall design of product systems and components, analyzing each element for potential issues. This structured approach helps teams prioritize their efforts based on risk levels.

Role in Product Design

DFMEA plays a crucial role during the early and end stages of product design. It helps designers anticipate problems before they materialize in physical prototypes or finished products.

The process involves:

• Identifying potential failure modes for each design component
• Determining the effects of these failures
• Assessing the severity of consequences
• Establishing detection methods
• Implementing design controls

By addressing design weaknesses early, companies save significant time and resources. DFMEA guides development teams toward robust designs with fewer iterations needed.

It also helps identify critical characteristics that require special attention during manufacturing and testing phases. This creates a direct link between design specifications and quality control requirements.

DFMEA in Risk Management

DFMEA uses a systematic rating system in risk management to evaluate design risks. Teams assign numerical values to:

1. Severity – How serious the failure’s impact would be
2. Occurrence – How likely the failure is to happen
3. Detection – How easily the failure can be detected

These ratings combine into the Risk Priority Number (RPN), which helps prioritize immediate issues.

DFMEA documentation serves as evidence of due diligence in product safety efforts. This can be valuable for regulatory compliance and liability protection.

Teams use DFMEA findings to implement preventive measures that address root causes of potential failures. This proactive approach is more effective than reactive problem-solving after failures occur.

Key Differences Between FMEA and DFMEA

FMEA (Failure Mode and Effects Analysis) and DFMEA (Design Failure Mode and Effects Analysis) share the goal of identifying potential failures. Still, they differ significantly in their focus, timing, and application areas.

Process Focus vs. Design Focus

FMEA is a broader analysis methodology that can be applied across multiple areas, including products, processes, and services. It examines potential failures in any system to prevent issues before they occur.

As the name suggests, DFMEA specifically focuses on a product’s design aspects. It evaluates the overall design of product systems and components to determine potential failure modes and their causes.

The scope of analysis differs significantly between the two. While FMEA can address failures in any part of an organization’s operations, DFMEA focuses exclusively on design elements.

DFMEA asks questions like “How might this design fail?” and “What would cause this design to malfunction?” This targeted approach makes it particularly valuable for product developers and design engineers.

Timing in the Product Lifecycle

FMEA can be implemented at various stages throughout a product’s lifecycle, from initial concept through production and even during in-service operations.

In contrast, DFMEA is only used during the design stage of product development. It serves as a preventive measure before a product moves to manufacturing.

The timing difference is crucial because DFMEA helps catch potential failures before production begins, potentially saving significant resources. Once designs are finalized and production starts, organizations typically transition to other FMEA types.

This early implementation of DFMEA supports the “right first time” approach, reducing costly redesigns and modifications later in the product lifecycle.

Application Areas

FMEA has widespread applications across industries and departments. It can analyze processes, services, software, and hardware throughout their lifecycles.

DFMEA is primarily used for product design, focusing on how design flaws might cause components and systems to fail. It’s most valuable in the automotive, aerospace, and medical device manufacturing industries.

While both methodologies use similar approaches to risk analysis, DFMEA typically involves design engineers and technical specialists who understand product specifications and requirements.

DFMEA teams often use specialized tools for analysis, including fault-tree approaches to identify root causes of potential design failures. This targeted analysis helps create more robust product designs before manufacturing begins.

Scope of Analysis

FMEA and DFMEA differ significantly in their analytical scope and focus areas. These differences help organizations select the appropriate tool for their risk assessment needs.

Component Level vs. System Level

FMEA (Failure Mode and Effects Analysis) operates at a broader scope, covering a wide range of products, processes, and services. It examines potential failures across an entire system or organization.

DFMEA (Design FMEA) focuses on the design aspects of products or systems. It concentrates on identifying potential design flaws before production begins.

The scope difference is crucial because DFMEA is a specialized subset of the broader FMEA framework. Think of FMEA as the parent category and DFMEA as a more targeted application.

While FMEA can be applied to virtually any process or system, DFMEA is explicitly tailored for design teams working on new products or redesigning existing products.

Assessment Criteria

FMEA assessment criteria typically cover various potential failures across different operational phases. They evaluate impacts on multiple aspects, including safety, performance, and regulatory compliance.

DFMEA focuses on design-related failure modes, assessing how design decisions might lead to product malfunctions. Key assessment criteria include:

• Design specifications and requirements
• Material selection
• Component tolerances
• Interface compatibility
• Safety factors

DFMEA analysis often uses severity, occurrence, and detection ratings to calculate risk priority numbers (RPNs). These help prioritize which design risks need immediate attention.

The criteria in DFMEA are evaluated earlier in the product lifecycle, while broader FMEA criteria may be evaluated throughout the entire product or process lifecycle.

Methodologies and Procedures

Both FMEA and DFMEA follow specific methodologies that help teams identify and address potential failures. These approaches involve systematic steps and utilize specialized tools to document findings and prioritize actions.

Step-by-Step Approach

The FMEA process typically starts with identifying the system, component, or process to be analyzed. For DFMEA, this focuses specifically on product design elements during development stages.

Teams then identify potential failure modes for each component.

In DFMEA, these failures relate to design specifications, while general FMEA may cover broader operational issues.

Next, teams assess the effects of each failure mode and assign severity ratings on a scale (typically 1-10). This helps prioritize which issues need immediate attention.

The process continues with identifying potential causes and assigning occurrence ratings. Teams then evaluate current controls and determine detection ratings.

Finally, Risk Priority Numbers (RPNs) are calculated by multiplying severity, occurrence, and detection ratings. Higher RPNs indicate areas requiring immediate corrective actions.

Tools and Templates

Standard FMEA and DFMEA use similar documentation tools, though with different focuses. Both utilize structured worksheets or templates containing columns for components, functions, failure modes, effects, causes, controls, and ratings.

DFMEA templates specifically include design parameters and requirements that aren’t present in general FMEA forms. These help track design-specific considerations.

Modern FMEA implementation often uses specialized software tools that facilitate collaboration and maintain historical data. These tools can automatically calculate RPNs and track improvement actions.

Many organizations, like AIAG, provide standardized templates to ensure consistency across industries. These templates typically include sections for preventive actions and responsibility assignments.

Cross-functional teams should use these tools during dedicated workshops to capture diverse perspectives on potential failures.

Real-World Applications

FMEA and DFMEA serve distinct functions in risk management across various industries. Each methodology helps organizations identify and mitigate potential failures before they impact customers or operations.

Automotive Industry Example

The automotive sector extensively uses both FMEA and DFMEA to ensure vehicle safety and reliability. When designing a new braking system, manufacturers apply DFMEA during the design stage to identify potential failure modes before production begins.

Engineers might analyze how a brake pad could fail under extreme temperatures or assess the risk of hydraulic fluid leakage. They would rate each failure by severity, likelihood of occurrence, and detection difficulty.

Meanwhile, FMEA would extend beyond design to evaluate the entire braking system lifecycle, including production processes and in-service performance. This comprehensive approach helps manufacturers meet safety standards like ISO 26262 and reduce costly recalls.

Electronics and Manufacturing

In electronics manufacturing, DFMEA and FMEA serve complementary but distinct purposes. When designing a new smartphone, engineers use DFMEA to spot potential failures in components like batteries or circuit boards before manufacturing begins.

This might include analyzing thermal management issues or identifying potential short-circuit risks. Design teams assign risk priority numbers to prioritize critical issues requiring immediate design modifications.

Companies employ Process FMEA (PFMEA) for the manufacturing process itself to examine potential failures in assembly lines, soldering processes, or quality control systems.

This helps prevent defects from reaching consumers.

Leading electronics manufacturers integrate both approaches into a unified quality management system, often using specialized software to track risk metrics throughout the product lifecycle.

Benefits and Limitations

Understanding the strengths and weaknesses of both FMEA and DFMEA helps organizations decide which approach best suits their needs. Each methodology offers distinct advantages while also having certain limitations that should be considered.

FMEA Strengths and Weaknesses

FMEA’s greatest strength is its versatility across multiple applications. It can be used for products, processes, and services throughout their entire lifecycle. This broad applicability makes it a powerful tool for overall risk management.

FMEA provides a systematic approach to identifying potential failures before they occur. It helps prioritize risks based on severity, occurrence, and detection, allowing teams to focus resources on the most critical issues.

However, FMEA has some limitations. It can be time-consuming and resource-intensive, especially for complex systems with numerous potential failure modes.

Another weakness is that FMEA sometimes relies too heavily on team experience. Important failure modes might be missed without diverse expertise, leading to incomplete analysis.

FMEA also tends to focus on single-point failures rather than combinations of failures that might occur simultaneously.

DFMEA Advantages and Drawbacks

DFMEA offers the significant advantage of identifying potential product design issues before manufacturing begins. This early detection can save substantial costs by preventing design flaws from reaching production.

It promotes cross-functional collaboration by bringing together design, engineering, and quality teams. This collaborative approach helps capture diverse perspectives on potential failure modes.

DFMEA also creates valuable documentation that can be reused for similar products, building an organizational knowledge base over time.

The main limitation of DFMEA is its narrow focus on just the design phase. Unlike general FMEA, it doesn’t address manufacturing process risks or service delivery failures.

DFMEA requires specific design expertise to be effective. Without experienced design engineers, the analysis may miss critical failure modes unique to the designed product.

Integration With PFMEA and Other Analyses

While FMEA is an umbrella methodology, its specialized forms, such as DFMEA and PFMEA, work together to create comprehensive risk management.

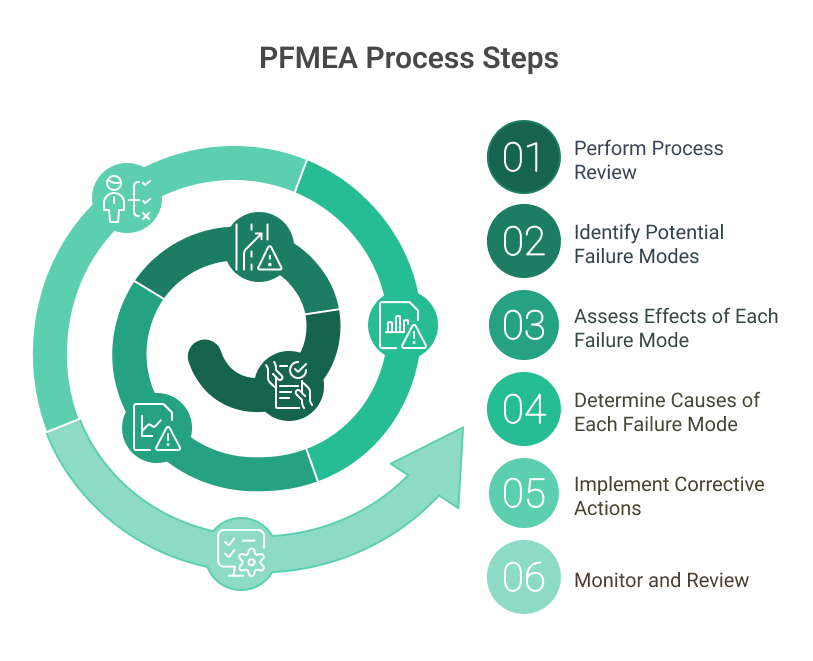

DFMEA focuses on spotting failure modes during product design, while PFMEA addresses risks within the manufacturing process.

The relationship between these analyses is sequential. DFMEA typically occurs first during product development, when design-related failures are identified. PFMEA follows, examining potential shortcomings in the production process.

Key Integration Points:

• DFMEA outputs become PFMEA inputs
• Design weaknesses identified in DFMEA inform process controls in PFMEA
• Both share similar severity, occurrence, and detection rating systems

Effective integration requires clear handoffs between design and manufacturing teams. The DFMEA and PFMEA processes are similar, but their inputs and outputs differ, making communication crucial.

Beyond PFMEA, these analyses connect with other quality tools like:

• Fault Tree Analysis (FTA)
• 8D Problem Solving
• Control Plans
• Design Reviews

System FMEA often sits above both DFMEA and PFMEA, examining interactions between components at a higher level.

Organizations gain the most value when treating these analyses as complementary rather than isolated efforts. This integration creates a continuous risk assessment loop from design through manufacturing.

Best Practices for Implementation

Implementing FMEA and DFMEA requires careful planning and execution to maximize effectiveness. Both methodologies benefit from similar best practices, but they have some key differences in their application.

Start with a cross-functional team that includes experts from various departments. For DFMEA, include design engineers, quality specialists, and manufacturing representatives. For general FMEA, ensure the team represents all relevant process areas.

Early implementation is crucial, especially for DFMEA. Changes are least expensive and most effective during the design phase. General FMEA can be implemented at various stages but works best proactively.

Follow industry guidelines and use a standardized approach.

Prioritize risks effectively using RPN (Risk Priority Number) calculations:

• Severity (1-10)
• Occurrence (1-10)
• Detection (1-10)

Document all findings thoroughly and maintain regular reviews of both FMEA and DFMEA analyses. These should be treated as living documents that evolve with the product or process.

For DFMEA specifically, focus on design elements that could affect the product’s functionality, reliability, and safety. This helps reduce operational costs in the long run.

Utilize software tools for FMEA/DFMEA to simplify documentation, tracking, and analysis of potential failure modes.

Always validate corrective actions through testing or simulation before full implementation to ensure they effectively mitigate the identified risks.

Conclusion

In conclusion, FMEA and DFMEA are vital components of a robust risk management strategy. While they share similar assessment principles, their distinct applications make them complementary rather than interchangeable tools.

FMEA is versatile enough to identify potential failures across the entire product lifecycle, offering a broad framework for risk assessment in various operational contexts.

Meanwhile, DFMEA focuses on catching design flaws before they reach production, potentially saving significant resources and preventing costly redesigns.

Implementing both methodologies as part of an integrated quality management system is the most effective approach.

By starting with DFMEA during product development and transitioning to broader FMEA applications throughout the product lifecycle, organizations can create a continuous risk assessment loop that enhances reliability, reduces costs, and improves customer satisfaction.

Remember that these analyses should be treated as living documents that evolve with your products and processes.

Regular reviews, cross-functional collaboration, and systematic documentation will ensure that both FMEA and DFMEA continue to provide value as preventive tools rather than simply becoming compliance exercises.

By understanding when and how to apply each methodology appropriately, maintenance teams can proactively identify and address potential failures before they impact operations or customers, ultimately supporting the organization’s commitment to quality and reliability.
